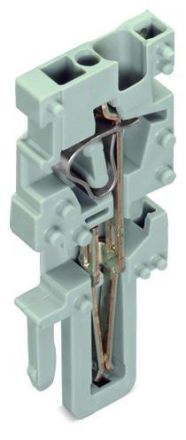

Wago 769-503 codable grey 1 conductor end module

Wago 769-503 codable grey 1 conductor end module

In stock

SKU: 519375

Price on request

€0.99

€0

Into a basketIn the basketGo

Overview

1-conductor female connector end module, CAGE CLAMP®, 4 mm², pitch 5 mm, 1-pole, coding nose, 4.00 mm², gray

Property	Value
Number of poles:	1
Color:	gray
Rated voltage:	500 V
Material of the insulating body:	Thermoplastic
Rated current In:	32 A
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	0.08 to 4 mm²
Connectable conductor cross-section, stranded:	0.08 to 4 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.25 to 2.5 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.08 to 4 mm²
Mounting type:	other
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of terminal points per pole:	1
Flammability class of the insulating material according to UL 94:	V0
End plate required:	no
Explosion-tested version 'Ex e':	no
Transparent:	no

Characteristics

HAB769-503 codable grey

Minimal order250 pcs

Manufacturer

HAN769-503

GTIN4017332331432

Connectable conductor cross-section solid0.08 to 4 mm²

Connectable conductor cross-section stranded0.08 to 4 mm²

Rated voltage500V

Rated current In32 A

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeOther

Number of poles1

TransparentNo
