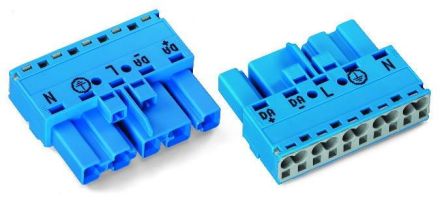

Wago 770-1115 Connector Building 5p Series 770

In stock

SKU: 524414

Price on request

€3.38

€0

Overview

5-pin plug, coding I blue

Property	Value
Connection type:	Spring-loaded connection
Number of connections per pole:	2
Design:	Plug
Rated voltage:	400 V
Rated impulse voltage:	6 kV
Rated current:	25 A
Fire load:	0.08361 kWh
Width:	50 mm
Contact resistance:	1 mOhm
Color of coding/contact insert:	blue
Halogen-free:	no
Height:	12.9 mm
Contact material:	CuSn
Length:	37.5 mm
Mechanical Coding:	yes
Surface treatment of contacts:	tinned
Number of poles:	5
Protection class (IP):	IP20
Degree of pollution:	3
Material of the housing:	Polyamide (PA)
With strain relief:	no
Connection cross-section (single-wire):	0.5 to 4 mm²
Connection cross-section (fine-stranded):	0.5 to 4 mm²
Locking type:	separate
Max. continuous temperature resistance of contact part:	85 °C
Max. continuous temperature resistance of strain relief:	105 °C
