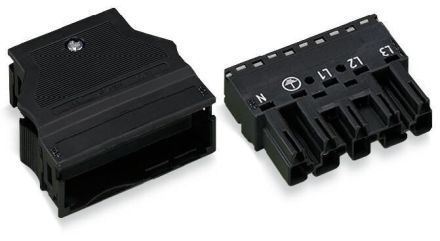

Wago 770-315 5-pin, black plug part

In stock

SKU: 519446

Price on request

€5.01

€0

Overview

Plug with strain relief housing 5-pin coding A black

Property	Value
Connection type:	Spring-loaded connection
Number of connections per pole:	1
Design:	Plug
Rated voltage:	400 V
Rated impulse voltage:	6 kV
Rated current:	25 A
Fire load:	0.18806 kWh
Width:	54.6 mm
Voltage resistance:	1 mOhm
Color of coding/contact insert:	black
Halogen-free:	yes
Height:	17 mm
Contact material:	CuSn
Length:	76 mm
Mechanical coding:	yes
Surface treatment of contacts:	tinned
Number of poles:	5
Protection class (IP):	IP20
Degree of pollution:	3
Material of the housing:	Polyamide (PA)
With strain relief:	yes
Connection cross-section (single-wire):	0.5 to 4 mm²
Connection cross-section (fine-stranded):	0.5 to 4 mm²
Locking type:	separate
Cable diameter:	9 to 13 mm
Max. continuous temperature resistance of contact part:	85 °C
Max. continuous temperature resistance of strain relief:	105 °C
