Wago 890-112 2-pin black plug part

In stock

SKU: 519445

Price on request

€3.54

€0

Overview

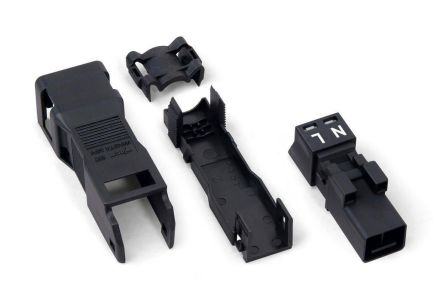

Plug with strain relief housing 2-pin coding A black

Property	Value
Connection type:	Spring-loaded connection
Number of connections per pole:	1
Design:	Plug
Rated voltage:	250 V
Rated impulse voltage:	4 kV
Rated current:	16 A
Fire load:	0.04167 kWh
Width:	15.6 mm
Voltage resistance:	1 mOhm
Color of coding/contact insert:	black
Halogen-free:	yes
Height:	13.2 mm
Contact material:	CuSn
Length:	61.6 mm
Mechanical coding:	yes
Surface treatment of contacts:	tinned
Pole marking:	L, N
Number of poles:	2
Protection class (IP):	IP40
Pollution level:	3
Material of the housing:	Polyamide (PA)
With strain relief:	yes
Connection cross-section (single-wire):	0.25 to 1.5 mm²
Connection cross-section (fine-wire):	0.25 to 1.5 mm²
Type of locking:	separate
Cable diameter:	3.8 to 8.2 mm
Max. continuous temperature resistance of contact part:	85 °C
Max. continuous temperature resistance of strain relief:	105 °C
