Wago 2000-5311 Initiator/Actuator Terminal 3E Series 2000

In stock

SKU: 524604

Price on request

€4.70

€0

Overview

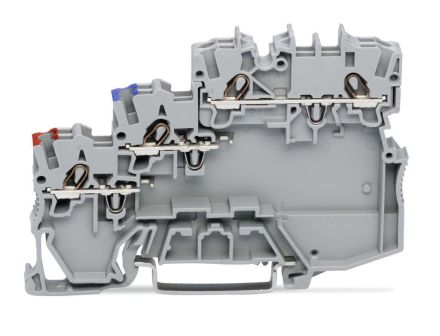

3-wire initiator terminal for PNP (plus) switching initiators with color-printed conductor entries 1 mm Push-in CAGE CLAMP®

Property	Value
Connectable conductor cross-section, fine-stranded with wire end ferrule:	0.5 to 0.75 mm²
Connectable conductor cross-section, solid-stranded:	0.5 to 1.5 mm²
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.14 to 1.5 mm²
Rated current In:	13.5 A
Connectable conductor cross-section, stranded:	0.14 to 1 mm²
Operating temperature:	105 °C
Color:	gray
Rated voltage:	250 V
Number of levels:	3
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
LED switching for:	no
With PE connection:	no
With shield connection:	no
With feed-in function:	no
Number of terminal points per level:	2
Internal level bridged:	no
Cross-connectable:	yes
Isolation function:	no
Explosion-tested version 'Ex e':	no
Material of the insulating body:	Thermoplastic
