Wago 2001-1421/1000-434 component terminal block series 2001

In stock

SKU: 520695

Price on request

€8.48

€0

Overview

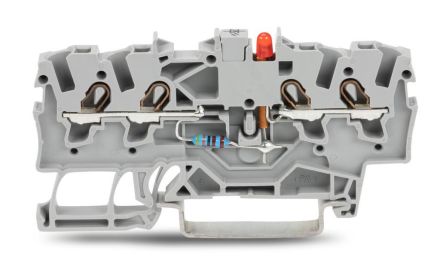

Component terminal, 4 conductors, red LED, DC 24 V, for mounting rail 35 x 15 and 35 x 7, 5, 1, 5 mm², Push-in CAGE CLAMP®, 1, 50 mm², gray

Property	Value
Connectable conductor cross-section, single-wire:	0.5 to 2.5 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.75 to 1.5 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.25 to 2.5 mm²
Connectable conductor cross-section, stranded:	0.25 to 1.5 mm²
Connection position:	top
Rated current In:	0.025 A
Operating temperature:	105 °C
Rated voltage:	24 V
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of levels:	1
Number of terminal points per level:	4
Levels bridged internally:	no
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
Width/grid dimension:	4.2 mm
Height with lowest mounting type:	33 mm
Length:	70 mm
End plate required:	yes
Color:	gray
Component type:	LED
Explosion-tested version 'Ex e':	no
Material of the insulating body:	Thermoplastic
