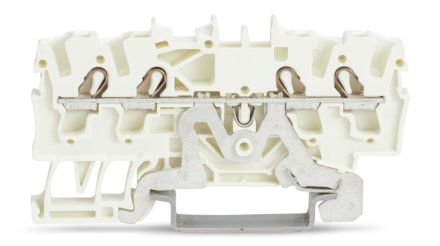

Wago 2002-1408 TOPJOB S 2.5qmm white 4 conductor shield terminal

Wago 2002-1408 TOPJOB S 2.5qmm white 4 conductor shield terminal

In stock

SKU: 520249

Price on request

€3.20

€0

Into a basketIn the basketGo

Overview

4-conductor shielded conductor terminal, 2.5 mm², side and center labeling, for mounting rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP®, 2.50 mm², white

Property	Value
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	0.75 to 4 mm²
Connectable conductor cross-section, stranded:	0.25 to 2.5 mm²
Connectable conductor cross-section, stranded without Wire end ferrule:	0.25 to 4 mm²
Connectable conductor cross-section, fine-stranded with wire end ferrule:	0.75 to 2.5 mm²
PEN function possible:	no
Design of electrical connection 1:	spring-loaded connection
Design of electrical connection 2:	spring-loaded connection
Number of levels:	1
Number of terminal points per level:	4
Color:	white
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Material of the insulating body:	Thermoplastic

Characteristics

HAB2002-1408 TOPJOB S 2,5qmm white

Minimal order100 pcs

Manufacturer

HAN2002-1408

GTIN4045454719494

Connectable conductor cross-section solid0.75 to 4 mm²

Connectable conductor cross-section stranded0.25 to 2.5 mm²

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeDIN rail TH35
