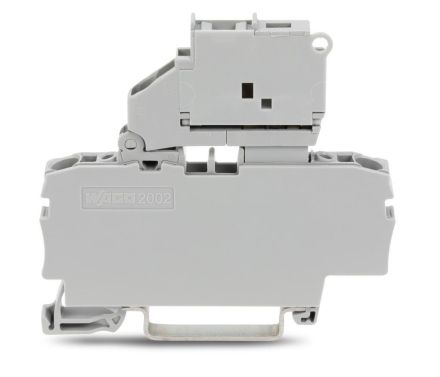

Wago 2002-1611 5x20 grey 2 conductor fuse terminal

In stock

SKU: 518796

Price on request

€3.52

€0

Overview

2-conductor fuse terminal, with pivoting fuse holder and end plate, for G-fuse insert 5 x 20 mm, without defect indicator, for mounting rail 35 x 15 and 35 x 7, 5, 2, 5 mm², Push-in CAGE CLAMP®, 2, 50 mm², gray

Property	Value
Connectable conductor cross-section, single-wire:	0.75 to 4 mm²
Connectable conductor cross-section, stranded:	0.25 to 2.5 mm²
Connectable conductor cross-section, stranded without wire end ferrule:	0.25 to 4 mm²
Connectable conductor cross-section, fine-stranded with wire end ferrule:	0.75 to 2.5 mm²
Operating temperature:	105 °C
Rated current In:	6.3 A
Design of the fuse insert:	G-fuse 5x20 mm
Design of the fuse holder:	pivoting
Type of display element for the defect display:	without
Rated voltage:	250 V
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of levels:	1
Mounting type:	DIN rail TH35
Color:	gray
End plate required:	no
Flammability class of the insulating material according to UL 94:	V0
Material of the insulating body:	Thermoplastic
