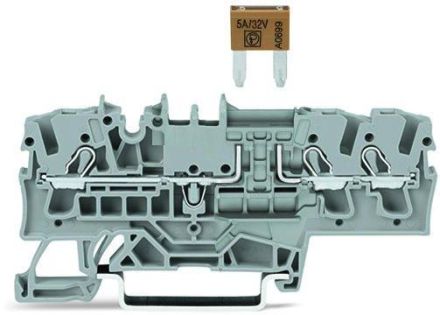

Wago 2002-1781 3-wire fuse terminal

Wago 2002-1781 3-wire fuse terminal

In stock

SKU: 520587

Price on request

€4.63

€0

Into a basketIn the basketGo

Overview

3-conductor fuse terminal, for automotive mini flat fuses, in accordance with DIN 7258-3f, ISO 8820-3, with testing option, without defect indication, 2.5 mm², Push-in CAGE CLAMP®, 2.50 mm², gray

Property	Value
Connectable conductor cross-section, single-wire:	0.75 to 4 mm²
Connectable conductor cross-section, stranded:	0.25 to 2.5 mm²
Connectable conductor cross-section, stranded without wire end ferrule:	0.25 to 4 mm²
Connectable conductor cross-section, fine-stranded with wire end ferrule:	0.75 to 2.5 mm²
Operating temperature:	105 °C
Rated current In:	10 A
Design of the fuse insert:	Flat fuse
Design of the fuse holder:	pluggable
Type of display element for the defect display:	without
Rated voltage:	400 V
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of levels:	1
Mounting type:	Top hat rail TH35
Color:	grey
End plate required:	yes
Flammability class of the insulating material according to UL 94:	V0
Material of the Insulating body:	Thermoplastic

Characteristics

HAB3 conductors

Minimal order50 pcs

Manufacturer

HAN2002-1781

GTIN4055143873338

Connectable conductor cross-section solid0.75 to 4 mm²

Connectable conductor cross-section stranded0.25 to 2.5 mm²

Rated voltage400V

Rated current In10A

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeDIN rail TH35
