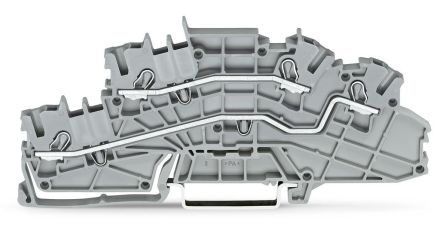

Wago 2003-6642 TOPJOB SL/L grey multi-level terminal

Wago 2003-6642 TOPJOB SL/L grey multi-level terminal

In stock

SKU: 518807

Price on request

€2.46

€0

Into a basketIn the basketGo

Overview

Installation level terminal, with actuation opening, 2.5 mm², L/L, Push-in CAGE CLAMP®, 2.50 mm², grey

Property	Value
Connectable conductor cross-section, single-wire:	0.75 to 4 mm²
Rated voltage:	400 V
Basic colour:	grey
Connectable conductor cross-section, stranded without wire end ferrule:	0.25 to 4 mm²
Connectable conductor cross-section, stranded with Wire end ferrule:	0.75 to 2.5 mm²
Operating temperature:	105 °C
Rated current In:	20 A
Connectable conductor cross-section, stranded:	0.25 to 2.5 mm²
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of potentials:	3
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
With PE function:	no
With N-separation slide:	no
N-function possible:	no
Material of the insulating body:	Thermoplastic

Characteristics

HAB2003-6642 TOPJOB SL/L grey

Manufacturer

HAN2003-6642

GTIN4050821322047

Connectable conductor cross-section solid0.75 to 4 mm²

Connectable conductor cross-section stranded0.25 to 2.5 mm²

Rated voltage400V

Rated current In20A

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Mounting typeDIN rail TH35
