Wago 2006-1631 fuse terminal block series 2006

Wago 2006-1631 fuse terminal block series 2006

In stock

SKU: 520476

Price on request

€5.16

€0

Into a basketIn the basketGo

Overview

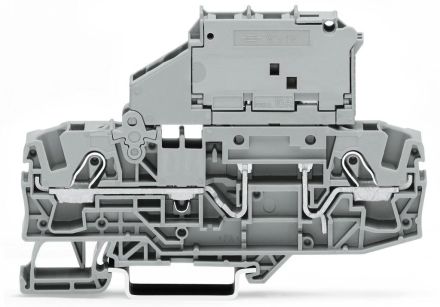

2-conductor fuse terminal, with pivoting fuse holder, for G-fuse insert ¼ x 1¼, without defect indicator, for mounting rail 35 x 15 and 35 x 7, 5, 6 mm², Push-in CAGE CLAMP®, 6, 00 mm², grey

Property	Value
Connectable conductor cross-section, single-wire:	1 to 10 mm²
Connectable conductor cross-section, stranded:	0.5 to 6 mm²
Connectable conductor cross-section, stranded without wire end ferrule:	0.5 to 10 mm²
Connectable conductor cross-section, fine-stranded with wire end ferrule:	1.5 to 6 mm²
Operating temperature:	105 °C
Rated current In:	10 A
Design of the fuse insert:	other
Design of the fuse holder:	pivoting
Type of display element for the defect display:	without
Rated voltage:	800 V
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of levels:	1
Mounting type:	DIN rail TH35
Color:	gray
End plate required:	yes
Flammability class of the insulating material according to UL 94:	V0
Material of the insulating body:	Thermoplastic

Characteristics

HAB2 conductors

Minimal order25 pcs

Manufacturer

HAN2006-1631

GTIN4045454821180

Connectable conductor cross-section solid1 to 10 mm²

Connectable conductor cross-section stranded0.5 to 6 mm²

Rated voltage800V

Rated current In10A

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeDIN rail TH35
