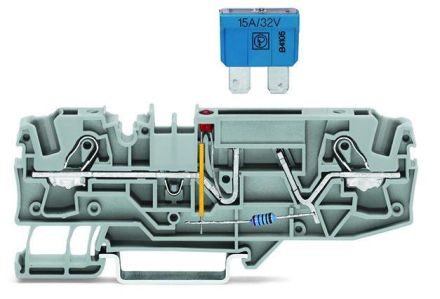

Wago 2006-1681/1000-449 fuse terminal block series 2006

In stock

SKU: 520458

Price on request

€12.26

€0

Overview

2-conductor fuse terminal, for automotive flat fuses, with testing option, with defect indication via LED, 12 V, for mounting rail 35 x 15 and 35 x 7, 5, 6 mm², Push-in CAGE CLAMP®, 6.00 mm², gray

Property	Value
Connectable conductor cross-section, single-wire:	1 to 10 mm²
Connectable conductor cross-section, stranded:	0.5 to 6 mm²
Connectable conductor cross-section, stranded without wire end ferrule:	0.5 to 10 mm²
Connectable conductor cross-section, finely stranded with wire end ferrule:	1.5 to 6 mm²
Operating temperature:	105 °C
Rated current In:	25 A
Design of the fuse insert:	Flat fuse
Design of the fuse holder:	plug-in
Type of display element for the defect display:	LED
Supply voltage for the defect display:	12 V
Voltage type for the defect indication:	AC
Rated voltage:	500 V
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of levels:	1
Mounting type:	DIN rail TH35
Color:	gray
End plate required:	yes
Flammability class of the insulating material according to UL 94:	V0
Material of the insulating body:	Thermoplastic
