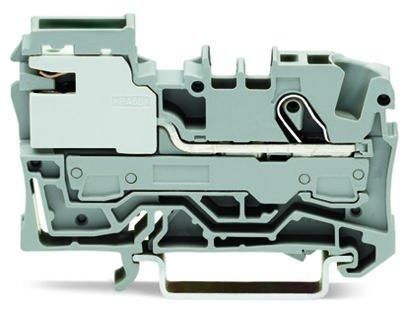

Wago 2006-7111 TOPJOB S 6qmm grey 1 conductor equipotential bonding terminal

Wago 2006-7111 TOPJOB S 6qmm grey 1 conductor equipotential bonding terminal

In stock

SKU: 519392

Price on request

€5.01

€0

Into a basketIn the basketGo

Overview

1-conductor equipotential bonding terminal, 6 mm², Push-in CAGE CLAMP®, 6.00 mm², gray

Property	Value
Connectable conductor cross-section, finely stranded without wire end ferrule:	0.5 to 10 mm²
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	1.5 to 10 mm²
Connectable conductor cross-section, stranded:	0.5 to 6 mm²
Connectable Conductor cross-section, fine-stranded with wire end ferrule:	1.5 to 6 mm²
Design of the electrical connection:	Spring-loaded connection
Rated current In:	51 A
Rated voltage:	250 V
Number of terminal points:	1
Mounting type:	DIN rail TH35
Connection plate required:	yes
Color:	other
Suitable for N busbar:	3x10 mm
Flammability class of the insulating material according to UL 94:	V0
Material of the insulating body:	Thermoplastic

Characteristics

HAB2006-7111 TOPJOB S 6qmm grey

Minimal order50 pcs

Manufacturer

HAN2006-7111

GTIN4044918989930

Connectable conductor cross-section solid1.5 to 10 mm²

Connectable conductor cross-section stranded0.5 to 6 mm²

Design of the electrical connectionSpring-loaded connection

Rated voltage250V

Rated current In51 A

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeDIN rail TH35

Wago 2006-7111 TOPJOB S 6qmm grey 1 conductor equipotential bonding terminal

Wago 2006-7111 TOPJOB S 6qmm grey 1 conductor equipotential bonding terminal

Price on request

€5.01

€0

Into a basketIn the basketGo
