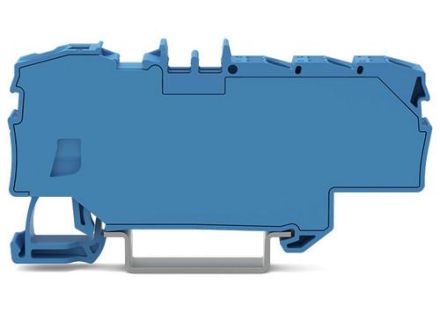

Wago 2006-8034 TOPJOB Push-in CAGE CLAMP 6.00qmm blue distribution terminal

Wago 2006-8034 TOPJOB Push-in CAGE CLAMP 6.00qmm blue distribution terminal

In stock

SKU: 840262

Price on request

€4.12

€0

Into a basketIn the basketGo

Overview

Distribution terminal, with actuation opening, 1 x 6 mm² / 6 x 1.5 mm², with integrated end plate, side and center labeling, for mounting rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP®, 6.00 mm², blue

Property	Value
Color:	blue
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.5 to 10 mm²
Connectable conductor cross-section, stranded:	0.5 to 6 mm²
Rated voltage:	800 V
Number of levels:	1
Number of terminal points per level:	7
Rated current In:	41 A
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	1 to 10 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	1.5 to 6 mm²
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	no
Levels bridged internally:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version 'Ex e':	no

Characteristics

HABTOPJOB Push-in CAGE CLAMP 6.00qmm blue

Minimal order12 pcs

Manufacturer

HAN2006-8034

GTIN4066966185775

Connectable conductor cross-section solid1 to 10 mm²

Connectable conductor cross-section stranded0.5 to 6 mm²

Rated voltage800V

Rated current In41 A

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeDIN rail TH35
