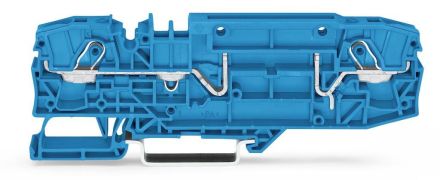

Wago 2006-8664 terminal block 0.5-10qmm series 2006

Wago 2006-8664 terminal block 0.5-10qmm series 2006

In stock

SKU: 520343

Price on request

€3.36

€0

Into a basketIn the basketGo

Overview

2-conductor base terminal, with testing option, for mounting rail 35 x 15 and 35 x 7, 5, 6 mm², Push-in CAGE CLAMP®, 6.00 mm², blue

Property	Value
Color:	blue
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.5 to 10 mm²
Connectable conductor cross-section, stranded:	0.5 to 6 mm²
Rated voltage:	1000 V
Number of levels:	1
Number of terminal points per level:	2
Rated current In:	30 A
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	1 to 10 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	1.5 to 6 mm²
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	Top hat rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Levels bridged internally:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version 'Ex e':	no

Characteristics

HAB2 conductors

Minimal order12 pcs

Manufacturer

HAN2006-8664

GTIN4050821421337

Connectable conductor cross-section solid1 to 10 mm²

Connectable conductor cross-section stranded0.5 to 6 mm²

Rated voltage1000V

Rated current In30A

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeDIN rail TH35
