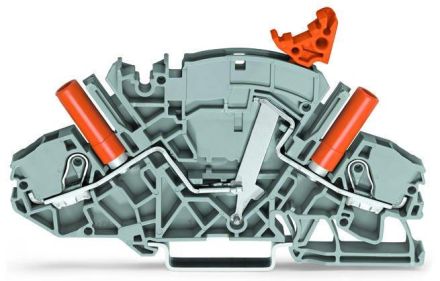

Wago 2007-8821/045-000 isolating terminal block gr series 2007 1-10qmm

In stock

SKU: 524402

Price on request

€8.65

€0

Overview

2-wire isolating and measuring terminal, e.g. B. for current transformer circuits, with holder for circuit jumper, for test plug Ø 4 mm, for mounting rail 35 x 15 and 35 x 7, 5, 6 mm², Push-in CAGE CLAMP®, 6, 00 mm², grey

Property	Value
Connectable conductor cross-section, single-wire:	1 to 10 mm²
Connectable conductor cross-section, stranded:	0.5 to 6 mm²
Connectable conductor cross-section, stranded without wire end ferrule:	0.5 to 10 mm²
Connectable Conductor cross-section, fine-stranded with wire end ferrule:	1.5 to 6 mm²
Rated current In:	30 A
Operating temperature:	105 °C
Rated voltage:	500 V
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of levels:	1
Number of terminal points per Floor:	2
Floors internally bridged:	no
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Color:	gray
Design of the longitudinal separation:	without
Design of the transverse separation:	without
With integrated test socket:	yes
Material of the insulating body:	Thermoplastic
