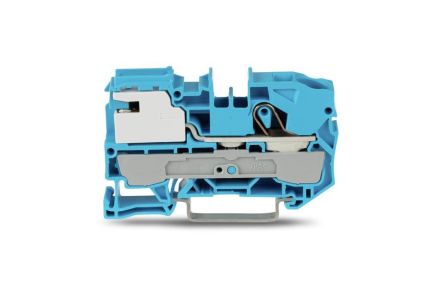

Wago 2010-7114 N-disconnect terminal 0.5-10qmm 57A 3x10mm bl

Wago 2010-7114 N-disconnect terminal 0.5-10qmm 57A 3x10mm bl

In stock

SKU: 524701

Price on request

€3.12

€0

Into a basketIn the basketGo

Overview

10qmm 1 conductor blue N isolating terminal Manufacturer article number: 2010-7114

Property	Value
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.5 to 16 mm²
Operating temperature:	105 °C
Connectable conductor cross-section, single-stranded:	2.5 to 16 mm²
Connectable conductor cross-section, stranded:	0.5 to 10 mm²
Connectable conductor cross-section, fine-stranded with Wire end ferrule:	2.5 to 10 mm²
Design of the electrical connection:	Spring-loaded connection
Rated current In:	57 A
Rated voltage:	250 V
Number of terminal points:	1
Mounting type:	DIN rail TH35
Connection plate required:	yes
Color:	blue
Suitable for N busbar:	3x10 mm
Flammability class of the insulating material according to UL 94:	V0
Material of the insulating body:	Thermoplastic

Characteristics

HAB10qmm 1 conductor blue

Manufacturer

HAN2010-7114

GTIN4055143879699

Connectable conductor cross-section solid2.5 to 16 mm²

Connectable conductor cross-section stranded0.5 to 10 mm²

Design of the electrical connectionSpring-loaded connection

Rated voltage250V

Rated current In57 A

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeDIN rail TH35
