Wago 2020-5477 Initiator/Actuator Terminal 4E Series 2020

In stock

SKU: 524678

Price on request

€13.06

€0

Overview

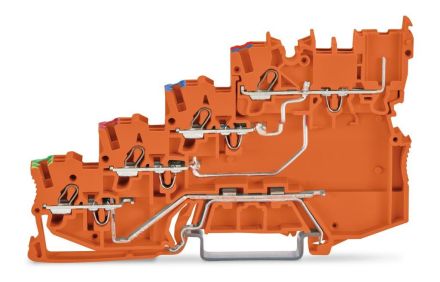

4-wire initiator feed terminal, for PNP (plus)-switching initiators, with PE connection, 1 mm², Push-in CAGE CLAMP®, 1.00 mm², orange

Property	Value
Connectable conductor cross-section, finely stranded with wire end ferrule:	0.5 to 0.75 mm²
Connectable conductor cross-section, solid:	0.5 to 1.5 mm²
Connectable conductor cross-section, finely stranded without wire end ferrule:	0.14 to 1.5 mm²
Rated current In:	13.5 A
Connectable conductor cross-section, stranded:	0.14 to 1 mm²
Operating temperature:	105 °C
Color:	orange
Rated voltage:	250 V
Number of levels:	4
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
LED switching for:	no
With PE connection:	yes
With shield connection:	no
With feed-in function:	yes
Number of terminal points per level:	2
Levels internally bridged:	yes
Cross-connectable:	yes
Isolation function:	no
Explosion-tested version 'Ex e':	no
Material of the insulating body:	Thermoplastic
