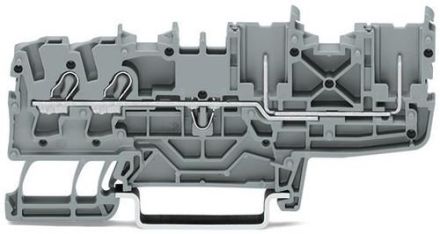

Wago 2022-1401 2-wire/2-pin mounting rail 2.50qmm grey base terminal

Wago 2022-1401 2-wire/2-pin mounting rail 2.50qmm grey base terminal

In stock

SKU: 807029

Price on request

€1.92

€0

Into a basketIn the basketGo

Overview

2022-1401 2-conductor/2-pin mounting rail 2.50qmm gray base terminal manufacturer article number: 2022-1401, manufacturer article name: 2-conductor/2-pin mounting rail 2.50qmm gray

Property	Value
Color:	gray
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.25 to 4 mm²
Connectable conductor cross-section, stranded:	0.25 to 2.5 mm²
Rated voltage:	690 V
Number of levels:	1
Number of terminal points per level:	4
Rated current In:	24 A
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	0.75 to 4 mm²
Connectable conductor cross-section, fine-stranded with wire end ferrule:	0.75 to 2.5 mm²
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Plug-in connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Levels bridged internally:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version 'Ex e':	no

Characteristics

HAB2-wire/2-pin mounting rail 2.50qmm grey

Minimal order50 pcs

Manufacturer

HAN2022-1401

GTIN4050821145226

Connectable conductor cross-section solid0.75 to 4 mm²

Connectable conductor cross-section stranded0.25 to 2.5 mm²

Rated voltage690V

Rated current In24A

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeDIN rail TH35
