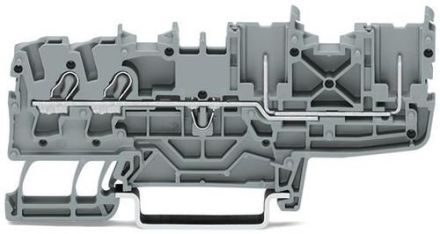

Wago 2022-1404 2-wire/2-pin mounting rail 2.50qmm blue base terminal

In stock
SKU: 807236
€2.43
Into a basketIn the basketGo

Overview

2022-1404 2-conductor/2-pin mounting rail 2.50qmm blue base terminal manufacturer article number: 2022-1404, manufacturer article name: 2-conductor/2-pin mounting rail 2.50qmm blue

Property Value
Color: blue
Connectable conductor cross-section, fine-stranded without wire end ferrule: 0.25 to 4 mm²
Connectable conductor cross-section, stranded: 0.25 to 2.5 mm²
Rated voltage: 690 V
Number of levels: 1
Number of terminal points per level: 4
Rated current In: 24 A
Operating temperature: 105 °C
Connectable conductor cross-section, single-wire: 0.75 to 4 mm²
Connectable conductor cross-section, fine-stranded with wire end ferrule: 0.75 to 2.5 mm²
Design of electrical connection 1: Spring-loaded connection
Design of electrical connection 2: Plug-in connection
Mounting type: DIN rail TH35
Flammability class of the insulating material according to UL 94: V0
End plate required: yes
Levels bridged internally: no
Material of the insulating body: Thermoplastic
Explosion-tested version 'Ex e': no

Characteristics

HAB2-wire/2-pin mounting rail 2.50qmm blue
Minimal order50 pcs
ManufacturerWago
HAN2022-1404
GTIN4050821145233
Connectable conductor cross-section solid0.75 to 4 mm²
Connectable conductor cross-section stranded0.25 to 2.5 mm²
Rated voltage690V
Rated current In24A
Operating temperatur105°C
Flammability class of the insulating material according to UL 94V0
ColorBlue
Mounting typeDIN rail TH35
