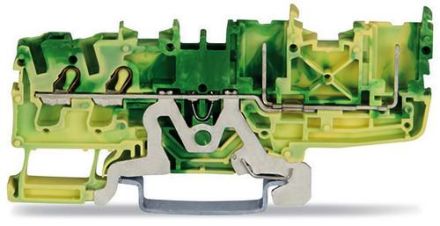

Wago 2022-1407/999-953 2-wire/2-pin PE application 2.50qmm green-yellow base terminal

In stock

SKU: 807239

Price on request

€4.66

€0

Overview

2022-1407/999-953 2-conductor/2-pin PE Anwe 2.50qmm green-yellow base terminal manufacturer article number: 2022-1407/999-953, manufacturer article name: 2-conductor/2-pin PE Anwe 2.50qmm green-yellow

Property	Value
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	0.75 to 4 mm²
Connectable conductor cross-section, stranded:	0.25 to 2.5 mm²
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.25 to 4 mm²
Connectable conductor cross-section, fine-stranded with wire end ferrule:	0.75 to 2.5 mm²
PEN function possible:	yes
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Plug-in connection
Number of levels:	1
Number of terminal points per level:	4
Color:	green/yellow
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Material of the insulating body:	Thermoplastic
