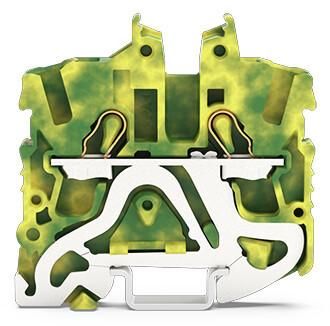

Wago 2052-1207 Push-in CAGE CLAMP 2.50qmm green-yellow 2 conductor mini protective conductor terminal

Wago 2052-1207 Push-in CAGE CLAMP 2.50qmm green-yellow 2 conductor mini protective conductor terminal

In stock

SKU: 834253

Price on request

€2.21

€0

Into a basketIn the basketGo

Overview

2-conductor mini protective conductor terminal, with actuation opening, 2.5 mm², with test opening, side and center labeling, for DIN rail 15, Push-in CAGE CLAMP®, 2.50 mm², green-yellow

Property	Value
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	0.75 to 4 mm²
Connectable conductor cross-section, stranded:	0.25 to 2.5 mm²
Connectable conductor cross-section, stranded without wire end ferrule:	0.25 to 4 mm²
Connectable conductor cross-section, finely stranded with wire end ferrule:	0.75 to 2.5 mm²
PEN function possible:	yes
Design of electrical connection 1:	spring-loaded connection
Design of electrical connection 2:	spring-loaded connection
Number of levels:	1
Number of terminal points per level:	2
Color:	green/yellow
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Material of the insulating body:	Thermoplastic

Characteristics

HABPush-in CAGE CLAMP 2.50qmm green-yellow

Manufacturer

HAN2052-1207

GTIN4055144128406

Connectable conductor cross-section solid0.75 to 4 mm²

Connectable conductor cross-section stranded0.25 to 2.5 mm²

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeDIN rail TH35

Wago 2052-1207 Push-in CAGE CLAMP 2.50qmm green-yellow 2 conductor mini protective conductor terminal

Wago 2052-1207 Push-in CAGE CLAMP 2.50qmm green-yellow 2 conductor mini protective conductor terminal

Price on request

€2.21

€0

Into a basketIn the basketGo
