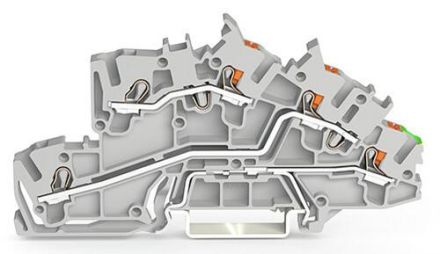

Wago 2203-7545 TOPJOB 2.5qmm L/L/PE installation terminal

Wago 2203-7545 TOPJOB 2.5qmm L/L/PE installation terminal

In stock

SKU: 837792

Price on request

€3.36

€0

Into a basketIn the basketGo

Overview

Installation floor terminal, with actuation opening and push-button, 2.5 mm², L/L/PE, ground floor green-yellow, Push-in CAGE CLAMP®, 2.50 mm², grey

Property	Value
Connectable conductor cross-section, single-wire:	0.75 to 4 mm²
Rated voltage:	400 V
Basic colour:	grey
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.25 to 4 mm²
Connectable conductor cross-section, fine-stranded with wire end ferrule:	0.75 to 2.5 mm²
Operating temperature:	105 °C
Rated current In:	31 A
Connectable conductor cross-section, stranded:	0.25 to 2.5 mm²
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of potentials:	3
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
With PE function:	yes
With N-separation slide:	no
N-function possible:	no
Material of the insulating body:	Thermoplastic

Characteristics

HABTOPJOB 2.5qmm L/L/PE

Minimal order50 pcs

Manufacturer

HAN2203-7545

GTIN4066966121995

Connectable conductor cross-section solid0.75 to 4 mm²

Connectable conductor cross-section stranded0.25 to 2.5 mm²

Rated voltage400V

Rated current In31 A

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Mounting typeDIN rail TH35

Wago 2203-7545 TOPJOB 2.5qmm L/L/PE installation terminal

Wago 2203-7545 TOPJOB 2.5qmm L/L/PE installation terminal

Price on request

€3.36

€0

Into a basketIn the basketGo
