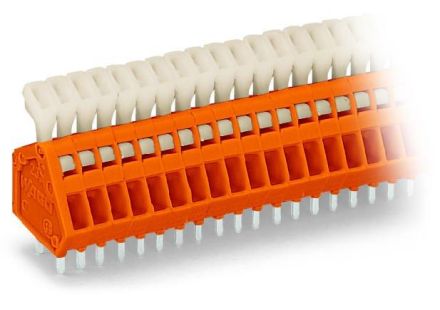

Wago 233-503 print terminal 3f 1re or series 233 RM=2.54

In stock

SKU: 524393

Price on request

€1.61

€0

Overview

PCB terminal, push-button, 0.5 mm², pitch 2.54 mm, 3-pole, CAGE CLAMP®, 0.50 mm², orange

Property	Value
Connectable conductor cross-section, single-wire:	0.08 to 0.5 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.25 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.08 to 0.5 mm²
Connectable conductor cross-section multi-wire:	0.08 to 0.5 mm²
Conductor connection type:	Spring-loaded connection
PCB connection type:	Solder connection
Number of electrical connections:	3
Number of levels:	1
Type of banding:	without
Type of PCB mounting:	Connection contact
Mounting type:	soldering
Rated voltage:	160 V
Rated impulse voltage:	2.5 kV
Rated current In:	6 A
Operating temperature:	-60 to 105 °C
Flammability class of the insulating material according to UL 94:	V0
Housing color:	orange
Height:	15.5 mm
Length of pin:	4 mm
Pitch of connections:	2.54 mm
Overvoltage category:	III
Pollution level:	2
Material of connection surface:	Tin
Material of insulation body:	Thermoplastic
Angle circuit board/conductor connection:	other
