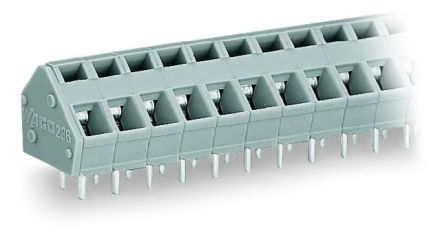

Wago 236-406 2.5qmm 6-pin 5mm GDS terminal

In stock

SKU: 519747

Price on request

€1.92

€0

Overview

PCB terminal, 2.5 mm², pitch 5/5.08 mm, 6-pin, CAGE CLAMP®, bridging option, 2.50 mm², gray

Property	Value
Connectable conductor cross-section, single-wire:	0.08 to 2.5 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.25 to 1.5 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.08 to 2.5 mm²
Connectable conductor cross-section multi-wire:	0.08 to 2.5 mm²
Conductor connection type:	spring-loaded connection
PCB connection type:	soldering connection
Number of electrical connections:	6
Number of levels:	1
Type of banding:	without
Type of PCB mounting:	connection contact
Mounting type:	soldering
Rated voltage:	320 V
Rated impulse voltage:	4 kV
Rated current In:	24 A
Operating temperature:	-60 to 105 °C
Flammability class of the insulating material according to UL 94:	V0
Housing color:	grey
Height:	13 mm
Length of Pins:	4 mm
Connection pitch:	5 mm
Overvoltage category:	III
Pollution level:	2
Connection surface material:	Tin
Insulating body material:	Thermoplastic
Angle circuit board/conductor connection:	45°/135° (obliquely upwards)
