Wago 243-746 print terminal 24f 6re hgn series 243

In stock

SKU: 524343

Price on request

€2.50

€0

Overview

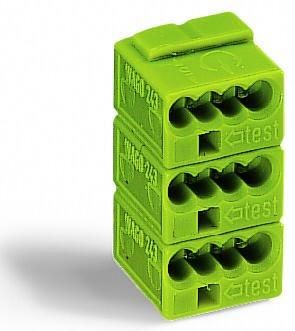

4-conductor female connector, PUSH WIRE®, Ø 0.8 mm, pitch 5.75 mm, 6-pin, for single solder pins, light green

Property	Value
Connectable conductor cross-section, single-wire:	0.5 to 1 mm²
Conductor connection type:	Plug-in terminal connection
PCB connection type:	Solder connection
Number of electrical connections:	4
Number of levels:	1
Type of banding:	without
Type of PCB mounting:	connection contact
Mounting type:	soldering
Rated voltage:	320 V
Rated impulse voltage:	4 kV
Rated current In:	6 A
Operating temperature:	-60 to 105 °C
Flammability class of the insulating material according to UL 94:	V0
Diameter of the connection pin:	1 mm
Housing color:	green
Height:	10 mm
Length of the pin:	4.5 mm
Pitch of the connections:	5.75 mm
Overvoltage category:	III
Degree of pollution:	2
Material of the Connection surface:	Tin
Material of the insulating body:	Thermoplastic
Angle circuit board/conductor connection:	0°/180° (horizontal)
