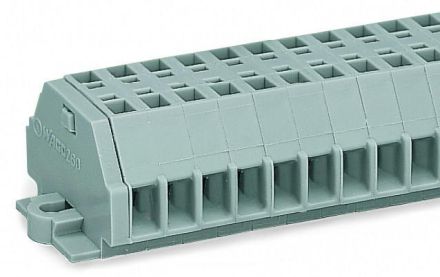

Wago 260-110 terminal block 0.08-1.5qmm series 260 18A

Wago 260-110 terminal block 0.08-1.5qmm series 260 18A

In stock

SKU: 519958

Price on request

€4.60

€0

Into a basketIn the basketGo

Overview

2-conductor terminal block, without push button, with mounting flanges, 10-pin, for screws etc. Fastening types, fastening hole Ø 3.2 mm, 1.5 mm², CAGE CLAMP®, 1.50 mm², grey

Property	Value
Number of poles:	10
Colour:	grey
Rated voltage:	400 V
Material of the insulating body:	Thermoplastic
Rated current In:	18 A
Operating temperature:	-30 to 85 °C
Center hole spacing:	58.1 mm
Connectable conductor cross-section, single-wire:	0.08 to 1.5 mm²
Connectable conductor cross-section, multi-wire:	0.08 to 1.5 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.08 to 1.5 mm²
Mounting type:	other
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of terminal points per pole:	2
Flammability class of the insulating material according to UL 94:	V0
End plate required:	no
Explosion-tested version 'Ex e':	no
Transparent:	no

Characteristics

HAB2 conductors with mounting flanges

Minimal order25 pcs

Manufacturer

HAN260-110

GTIN4044918598897

Connectable conductor cross-section solid0.08 to 1.5 mm²

Connectable conductor cross-section stranded0.08 to 1.5 mm²

Rated voltage400V

Rated current In18 A

Operating temperatur-30 to 85 °C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeOther

Number of poles10

TransparentNo
