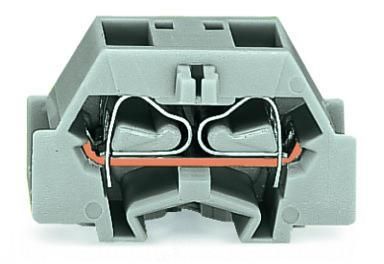

Wago 261-331 4-wire grey mini terminal

Wago 261-331 4-wire grey mini terminal

In stock

SKU: 524419

Price on request

€0.87

€0

Into a basketIn the basketGo

Overview

4-conductor terminal, without push-button, with mounting flange, 1-pole, for screws etc. Fastening types, fastening hole Ø 3.2 mm, 2.5 mm², CAGE CLAMP®, 2.50 mm², grey

Property	Value
Number of poles:	1
Colour:	grey
Rated voltage:	500 V
Material of the insulating body:	Thermoplastic
Rated current In:	24 A
Operating temperature:	-30 to 85 °C
Connectable conductor cross-section, single-wire:	0.08 to 2.5 mm²
Connectable conductor cross-section, multi-wire:	0.08 to 2.5 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.08 to 2.5 mm²
Mounting type:	other
Design of electrical connection 1:	spring-loaded connection
Design of electrical connection 2:	spring-loaded connection
Number of terminal points per pole:	4
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Explosion-tested version 'Ex e':	no
Transparent:	no

Characteristics

HAB261-331 4-wire grey

Minimal order200 pcs

Manufacturer

HAN261-331

GTIN4044918610643

Connectable conductor cross-section solid0.08 to 2.5 mm²

Connectable conductor cross-section stranded0.08 to 2.5 mm²

Rated voltage500V

Rated current In24A

Operating temperatur-30 to 85 °C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeOther

Number of poles1

TransparentNo
