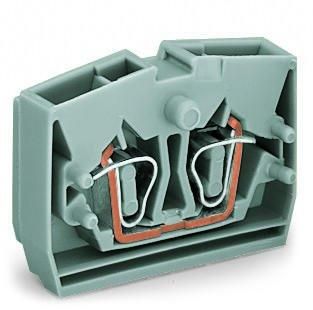

Wago 264-321 middle terminal 0.08-2.5qmm series 264 24A

Wago 264-321 middle terminal 0.08-2.5qmm series 264 24A

In stock

SKU: 519138

Price on request

€0.99

€0

Into a basketIn the basketGo

Overview

2-conductor middle terminals are required for terminal blocks with mounting flanges between the end plate and the end terminal gray

Property	Value
Number of poles:	1
Color:	gray
Rated voltage:	800 V
Material of the insulating body:	Thermoplastic
Rated current In:	24 A
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	0.08 to 2.5 mm²
Connectable conductor cross-section, multi-wire:	0.08 to 2.5 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.25 to 1.5 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.08 to 2.5 mm²
Mounting type:	other
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of terminal points per pole:	2
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Explosion-tested version 'Ex e':	no
Transparent:	no

Characteristics

HAB0.08-2.5sqm grey

Minimal order100 pcs

Manufacturer

HAN264-321

GTIN4044918415279

Connectable conductor cross-section solid0.08 to 2.5 mm²

Connectable conductor cross-section stranded0.08 to 2.5 mm²

Rated voltage800V

Rated current In24A

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeOther

Number of poles1

TransparentNo
