Wago 280-502/281-592 component terminal block series 280

In stock

SKU: 522034

Price on request

€15.05

€0

Overview

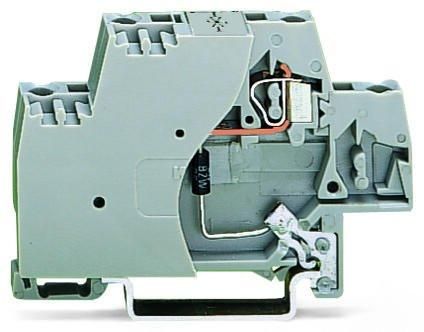

Component terminal, double-deck, with end plate and direct discharge to mounting rail, with transil diode 1.5KE150C, DC 110 V, for mounting rail 35 x 15 and 35 x 7, 5, 2.5 mm², CAGE CLAMP®, 2.50 mm², grey

Property	Value
Connectable conductor cross-section, single-wire:	0.08 to 2.5 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.08 to 2.5 mm²
Connectable conductor cross-section, multi-wire:	0.08 to 2.5 mm²
Rated current In:	20 A
Operating temperature:	105 °C
Rated voltage:	115 V
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of levels:	1
Number of terminal points per level:	2
Levels internally bridged:	no
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Color:	grey
Component type:	Suppressor diode
Explosion-tested version 'Ex e':	no
Material of the Insulating body:	Thermoplastic
