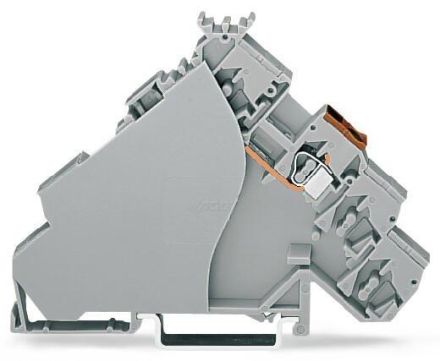

Wago 280-515 Actuator supply terminal

In stock

SKU: 520864

Price on request

€4.97

€0

Overview

Actuator feed terminal, feed on the control cabinet side, with color-printed conductor entries, 2.5 mm², CAGE CLAMP®, 2.50 mm², gray

Property	Value
Connectable conductor cross-section, fine-stranded with wire end ferrule:	0.25 to 1.5 mm²
Connectable conductor cross-section, solid-stranded:	0.08 to 2.5 mm²
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.08 to 2.5 mm²
Rated current In:	20 A
Connectable conductor cross-section, stranded:	0.08 to 2.5 mm²
Operating temperature:	105 °C
Color:	gray
Rated voltage:	400 V
Number of levels:	1
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	no
LED switching for:	no
With PE connection:	no
With shield connection:	yes
With feed-in function:	yes
Number of terminal points per Floor:	1
Floors internally bridged:	no
Cross-connectable:	no
Isolation function:	no
Explosion-tested version 'Ex e':	no
Material of the insulating body:	Thermoplastic
