Wago 280-876 isolating terminal block bl series 280

In stock

SKU: 519879

Price on request

€3.88

€0

Overview

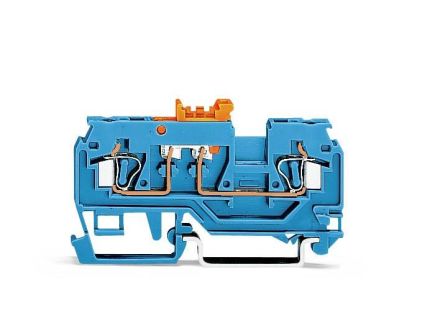

2-conductor isolating and measuring terminal, with pivoting isolating blade, with test opening, isolating blade holder orange, suitable for Ex i applications, for mounting rail 35 x 15 and 35 x 7, 5, 2, 5 mm², CAGE CLAMP®, 2, 50 mm², blue

Property	Value
Connectable conductor cross-section, single-wire:	0.08 to 2.5 mm²
Connectable conductor cross-section, stranded:	0.08 to 2.5 mm²
Connectable conductor cross-section, stranded without wire end ferrule:	0.08 to 2.5 mm²
Connectable conductor cross-section, finely stranded with wire end ferrule:	0.25 to 1.5 mm²
Rated current In:	16 A
Operating temperature:	105 °C
Rated voltage:	400 V
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of levels:	1
Number of terminal points per level:	2
Levels bridged internally:	no
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Color:	blue
Design of the longitudinal separation:	without
Design of the Cross separation:	without
With integrated test socket:	no
Material of the insulating body:	Thermoplastic
