Wago 281-656 terminal block 0.08-4qmm series 281 1 level

Wago 281-656 terminal block 0.08-4qmm series 281 1 level

In stock

SKU: 520607

Price on request

€3.48

€0

Into a basketIn the basketGo

Overview

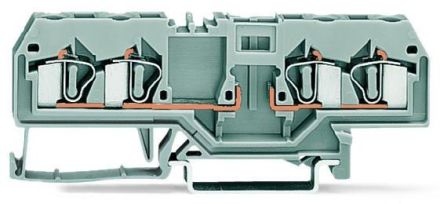

4-conductor base terminal, for mounting rail 35 x 15 and 35 x 7, 5, 4 mm², CAGE CLAMP®, 4, 00 mm², gray

Property	Value
Color:	gray
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.08 to 4 mm²
Connectable conductor cross-section, stranded:	0.08 to 4 mm²
Rated voltage:	400 V
Number of Levels:	1
Number of terminal points per level:	4
Rated current In:	10 A
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	0.08 to 4 mm²
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	Top hat rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Levels bridged internally:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version 'Ex e':	no

Characteristics

HAB4 conductors

Minimal order50 pcs

Manufacturer

HAN281-656

GTIN4050821214915

Connectable conductor cross-section solid0.08 to 4 mm²

Connectable conductor cross-section stranded0.08 to 4 mm²

Rated voltage400V

Rated current In10A

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeDIN rail TH35
