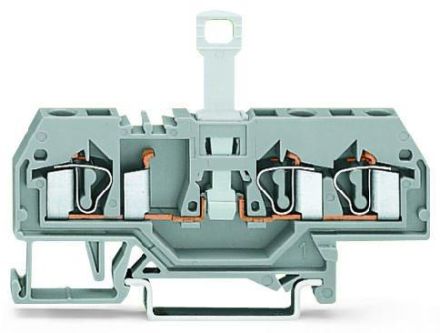

Wago 281-683 isolating terminal block gr series 281

In stock

SKU: 520599

Price on request

€3.38

€0

Overview

3-conductor disconnect terminal, for mounting rail 35 x 15 and 35 x 7, 5, 4 mm², CAGE CLAMP®, 4, 00 mm², grey

Property	Value
Connectable conductor cross-section, single-wire:	0.08 to 4 mm²
Connectable conductor cross-section, stranded:	0.08 to 4 mm²
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.08 to 4 mm²
Connectable conductor cross-section, fine-stranded with Wire end ferrule:	0.25 to 2.5 mm²
Rated current In:	10 A
Operating temperature:	105 °C
Rated voltage:	400 V
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of levels:	1
Number of terminal points per level:	3
Levels bridged internally:	no
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Color:	gray
Design of the longitudinal separation:	without
Design of the transverse separation:	without
With integrated test socket:	no
Material of the insulating body:	Thermoplastic
