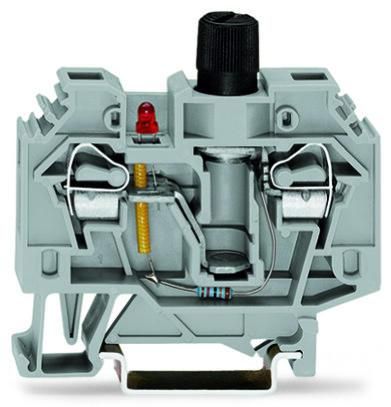

Wago 282-128/281-413 fuse terminal block series 282

In stock

SKU: 520442

Price on request

€10.01

€0

Overview

2-conductor fuse terminal, for G-fuse insert ¼ x 1¼, with defect indication via LED, DC 24 V, for mounting rail 35 x 15 and 35 x 7, 5, 6 mm², CAGE CLAMP®, 6, 00 mm², gray

Property	Value
Connectable conductor cross-section, single-wire:	0.2 to 6 mm²
Connectable conductor cross-section, stranded:	0.2 to 6 mm²
Connectable conductor cross-section, stranded without wire end ferrule:	0.2 to 6 mm²
Operating temperature:	105 °C
Rated current In:	10 A
Design of the fuse insert:	other
Design of the fuse holder:	screwable
Type of display element for the defect display:	LED
Supply voltage for the defect display:	24 V
Type of voltage for the defect display:	DC
Rated voltage:	110 V
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of levels:	1
Mounting type:	DIN rail TH35
Color:	gray
End plate required:	yes
Flammability class of the insulating material according to UL 94:	V0
Material of the insulating body:	Thermoplastic
