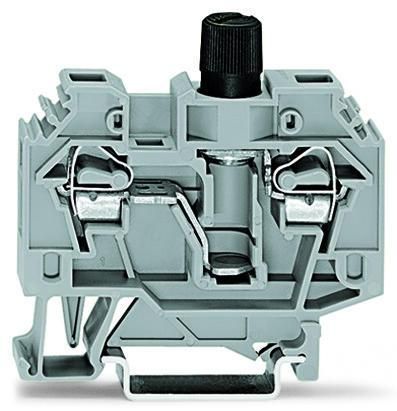

Wago 282-128 6qmm grey 2 conductor fuse terminal

Wago 282-128 6qmm grey 2 conductor fuse terminal

In stock

SKU: 519539

Price on request

€8.49

€0

Into a basketIn the basketGo

Overview

2-conductor fuse terminal, for G-fuse insert ¼ x 1¼, without defect indicator, for mounting rail 35 x 15 and 35 x 7, 5, 6 mm², CAGE CLAMP®, 6.00 mm², gray

Property	Value
Connectable conductor cross-section, single-wire:	0.2 to 6 mm²
Connectable conductor cross-section, stranded:	0.2 to 6 mm²
Connectable conductor cross-section, stranded without wire end ferrule:	0.2 to 6 mm²
Operating temperature:	105 °C
Rated current In:	10 A
Design of the fuse insert:	other
Design of the fuse holder:	screwable
Type of display element for the defect indication:	without
Rated voltage:	500 V
Design of electrical connection 1:	spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of levels:	1
Mounting type:	DIN rail TH35
Color:	gray
End plate required:	yes
Flammability class of the insulating material according to UL 94:	V0
Material of the insulating body:	Thermoplastic

Characteristics

HAB282-128 6qmm grey

Minimal order40 pcs

Manufacturer

HAN282-128

GTIN4044918558563

Connectable conductor cross-section solid0.2 to 6 mm²

Connectable conductor cross-section stranded0.2 to 6 mm²

Rated voltage500V

Rated current In10A

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeDIN rail TH35

Wago 282-128 6qmm grey 2 conductor fuse terminal

Wago 282-128 6qmm grey 2 conductor fuse terminal

Price on request

€8.49

€0

Into a basketIn the basketGo
