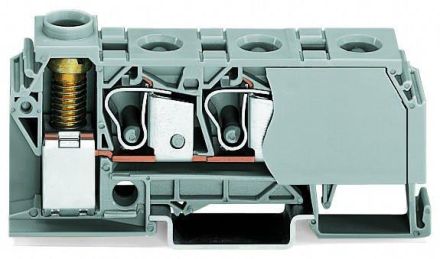

Wago 284-621 CLAMP grey distribution terminal

In stock

SKU: 518610

Price on request

€11.81

€0

Overview

Distribution terminal, 10 mm², side label holders, for mounting rail 35 x 15 and 35 x 7.5, screw connection and CAGE CLAMP®, 3 x CAGE CLAMP® connection 10 mm², 1 x screw connection 35 mm², 10.00 mm², gray

Property	Value
Color:	gray
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.2 to 10 mm²
Connectable conductor cross-section, stranded:	0.2 to 10 mm²
Rated voltage:	800 V
Number of levels:	1
Number of terminal points per level:	3
Rated current In:	125 A
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	0.2 to 10 mm²
Design of electrical connection 1:	Screw connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	Top hat rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	no
Levels bridged internally:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version 'Ex e':	no
