Wago 285-159 for high current terminals 50qmm three-phase set

Wago 285-159 for high current terminals 50qmm three-phase set

In stock

SKU: 519010

Price on request

€78.56

€0

Into a basketIn the basketGo

Overview

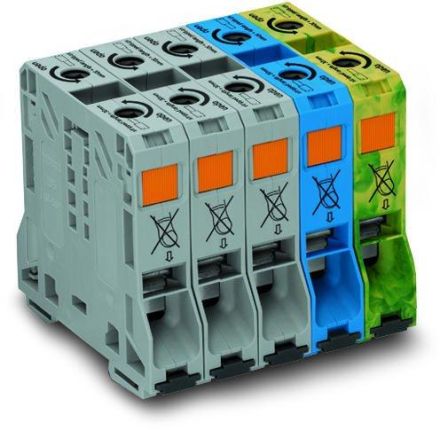

Three-phase set, with high-current terminals 50 mm², only on mounting rail 35 x 15, copper, 50 mm², POWER CAGE CLAMP, 50.00 mm², grey/blue/green-yellow

Property	Value
Number of poles:	5
Color:	multi-colored
Rated voltage:	1000 V
Material of the insulating body:	Thermoplastic
Rated current In:	150 A
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	10 to 50 mm²
Connectable conductor cross-section, multi-wire:	10 to 50 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	10 to 50 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	10 to 70 mm²
Mounting type:	DIN rail TH35
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of terminal points per pole:	2
Flammability class of the insulating material according to UL 94:	V0
End plate required:	no
Explosion-tested version 'Ex e':	no
Transparent:	no

Characteristics

HAB285-159 for high current terminals 50qmm

Manufacturer

HAN285-159

GTIN4045454584269

Connectable conductor cross-section solid10 to 50 mm²

Connectable conductor cross-section stranded10 to 50 mm²

Rated voltage1000V

Rated current In150A

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeDIN rail TH35

Number of poles5

TransparentNo
