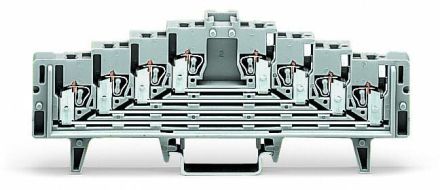

Wago 727-220 4 levels grey without locking hook jumper terminal

Wago 727-220 4 levels grey without locking hook jumper terminal

In stock

SKU: 519146

Price on request

€10.01

€0

Into a basketIn the basketGo

Overview

4-level jumper terminal without imprint 4 x pairwise connection of the terminal points on the same level for mounting rail 35 x 7.5 gray

Property	Value
Color:	gray
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.08 to 1.5 mm²
Connectable conductor cross-section, stranded:	0.08 to 1.5 mm²
Rated voltage:	250 V
Number of Levels:	4
Number of terminal points per level:	4
Rated current In:	12 A
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	0.08 to 1.5 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.25 to 0.75 mm²
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	Top hat rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Levels bridged internally:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version 'Ex e':	no

Characteristics

HAB727-220 4 levels grey without locking hooks

Minimal order50 pcs

Manufacturer

HAN727-220

GTIN4045454188559

Connectable conductor cross-section solid0.08 to 1.5 mm²

Connectable conductor cross-section stranded0.08 to 1.5 mm²

Rated voltage250V

Rated current In12A

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeDIN rail TH35
