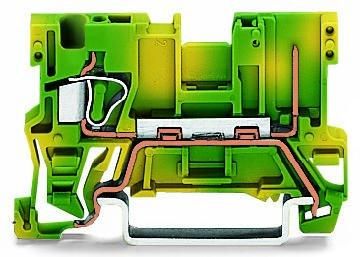

Wago 769-237 1-wire, 1-pin, green base terminal

Wago 769-237 1-wire, 1-pin, green base terminal

In stock

SKU: 519357

Price on request

€1.51

€0

Into a basketIn the basketGo

Overview

1-conductor/1-pin PE base terminal, 4 mm², for mounting rail 35 x 15 and 35 x 7.5, CAGE CLAMP®, 4.00 mm², green-yellow

Property	Value
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	0.08 to 4 mm²
Connectable conductor cross-section, stranded:	0.08 to 4 mm²
Connectable conductor cross-section, stranded without wire end ferrule:	0.08 to 4 mm²
Connectable conductor cross-section, fine-stranded with wire end ferrule:	0.25 to 2.5 mm²
PEN function possible:	yes
Design of electrical connection 1:	spring-loaded connection
Design of electrical connection 2:	plug-in connection
Number of levels:	1
Number of terminal points per level:	2
Color:	green/yellow
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Material of the insulating body:	Thermoplastic

Characteristics

HAB769-237 1-wire, 1-pin, green

Minimal order100 pcs

Manufacturer

HAN769-237

GTIN4044918827843

Connectable conductor cross-section solid0.08 to 4 mm²

Connectable conductor cross-section stranded0.08 to 4 mm²

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeDIN rail TH35

Wago 769-237 1-wire, 1-pin, green base terminal

Wago 769-237 1-wire, 1-pin, green base terminal

Price on request

€1.51

€0

Into a basketIn the basketGo
