Wago 782-613 6qmm blue 1 conductor N isolating terminal

In stock

SKU: 518586

Price on request

€2.69

€0

Overview

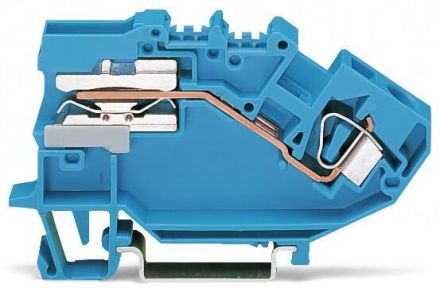

1-conductor N-isolating terminal, 6 mm², CAGE CLAMP®, 6.00 mm², blue

Property	Value
Connectable conductor cross-section, finely stranded without wire end ferrule:	0.2 to 6 mm²
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	0.2 to 6 mm²
Connectable conductor cross-section, stranded:	0.2 to 6 mm²
Design of the electrical Connection:	Spring-loaded connection
Rated current In:	41 A
Rated voltage:	400 V
Number of terminal points:	1
Mounting type:	DIN rail TH35
Connection plate required:	yes
Color:	blue
Suitable for N busbar:	3x10 mm
Flammability class of the insulating material according to UL 94:	V0
Material of the insulating body:	Thermoplastic
