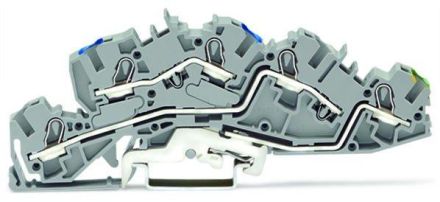

Wago TOPJOB SN/L/PE 4/6QMM 2005-7646 GREY tier terminal

Wago TOPJOB SN/L/PE 4/6QMM 2005-7646 GREY tier terminal

In stock

SKU: 518446

Price on request

€3.61

€0

Into a basketIn the basketGo

Overview

Installation level terminal, with actuation opening, 4 mm², N/L/PE, Push-in CAGE CLAMP®, 4.00 mm², grey

Property	Value
Connectable conductor cross-section, single-wire:	1 to 6 mm²
Rated voltage:	250 V
Basic colour:	grey
Connectable conductor cross-section, stranded without wire end ferrule:	0.5 to 6 mm²
Connectable conductor cross-section, stranded with Wire end ferrule:	0.75 to 4 mm²
Operating temperature:	105 °C
Rated current In:	36 A
Connectable conductor cross-section, stranded:	0.5 to 4 mm²
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of potentials:	3
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
With PE function:	yes
With N-separation slide:	no
N-function possible:	yes
Material of the insulating body:	Thermoplastic

Characteristics

HABTOPJOB SN/L/PE 4/6QMM 2005-7646 GREY

Manufacturer

HAN2005-7646

GTIN4055143042260

Connectable conductor cross-section solid1 to 6 mm²

Connectable conductor cross-section stranded0.5 to 4 mm²

Rated voltage250V

Rated current In36 A

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Mounting typeDIN rail TH35
