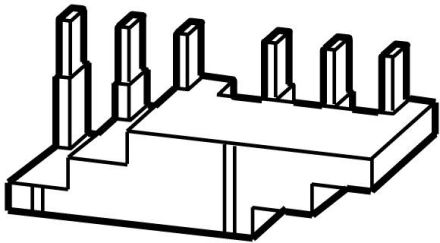

Eaton B3.0/2-PKZ4 three-phase busbar block, for 2 PKZ4, 220220

Eaton B3.0/2-PKZ4 three-phase busbar block, for 2 PKZ4, 220220

In stock

SKU: 219844

Price on request

€21.61

€0

Into a basketIn the basketGo

Overview

Three-phase busbar block, 3-pole for feeding in 2 PKZM4-... without side-mounted auxiliary switches or voltage releases, extendable by rotated assembly, length 110mm, touch-safe, Ue = 690 V, Iu = 128 A

Property	Value
Number of poles:	3
Number of phases:	3
Length:	98 mm
Rated continuous current Iu:	128 A
Max. Rated operating voltage Ue:	690 V
Insulated:	yes
Suitable for number of devices:	2
Suitable for devices with N conductor:	no
Pitch:	55 mm
Suitable for devices with auxiliary switch:	no
Design of the electrical connection:	pin
Rated impulse voltage:	6 kV

Characteristics

Suitable for devices with auxiliary switchNo

Suitable for devices with N conductorNo

Suitable for number of devices2

Pitch dimension55 mm

Rated surge voltage6 kV

HABB3.0/2-PKZ4

Manufacturer

HAN220220

GTIN4015082202200

Number of phases3

Design of the electrical connectionPen

Rated continuous current Iu128 A

IsolatedYes

Length98 mm

Max. rated operating voltage Ue690V

Number of poles3
