Eaton SWD4-3LF8-24-2S 3m flat cable, 8-pole with flat plugs, 116027

Eaton SWD4-3LF8-24-2S 3m flat cable, 8-pole with flat plugs, 116027

In stock

SKU: 225653

Price on request

€20.16

€0

Overview

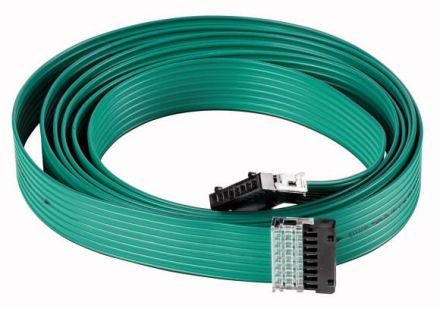

8-pin SmartWire-DT flat cable for connecting the SWD participants within the control cabinet, 3 m long, assembled with 2 flat plugs SWD4-8MF2

Property	Value
Number of cores:	8
Outer diameter approx.:	17.5 mm
Conductor class:	Class 2 = multi-wire
Stranding element:	no
Core marking:	Color
Shield over stranding element:	without
Category:	other
Flame retardant:	according to EN 60332-1-2
Low smoke according to EN 61034-2:	no
Sheath color:	green
Nominal conductor cross-section:	0.23 mm²
Conductor diameter:	1.35 mm
Stranding:	other
Material of the core insulation:	Polyvinyl chloride (PVC)
Shield over stranding:	without
Conductor surface:	tinned
Protective jacket:	other
Jacket material:	Polyvinyl chloride (PVC)
Halogen-free according to EN 60754-1/2:	no
Halogen-free according to IEC 60754-2:	no
Low smoke according to IEC 61034-2:	no
Oil resistant according to EN 60811-404:	no
Oil resistant according to IEC 60811-404:	no
Insulation integrity according to IEC 60331:	no
Permissible external cable temperature during assembly/handling:	-10 to 105 °C
Permissible Cable external temperature after installation without vibration:	-30 to 105 °C
NVP value:	66.7 %
Specification of core insulation:	other
Cable longitudinally watertight:	no
Cable transversely watertight:	no
Specification of sheath material:	other
Fire behavior class according to EN 13501-6:	without
Smoke development class according to EN 13501-6:	without
Drip behavior class according to EN 13501-6:	without
Acid development class according to EN 13501-6:	without
Min. permissible bending radius, flexible use with forced guidance:	15 mm
Min. permissible bending radius, flexible use/free movement:	15 mm
Min. permissible bending radius, stationary use/permanently installed:	7.5 mm
Laying in the ground:	no
UV-resistant:	no
