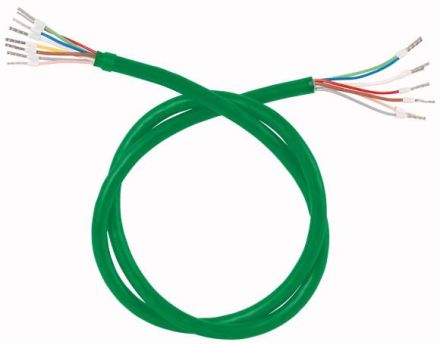

Eaton SWD4-50LR8-24 SWD round cable, 50 m, 8-pole, diameter 8 mm, 116030

Eaton SWD4-50LR8-24 SWD round cable, 50 m, 8-pole, diameter 8 mm, 116030

In stock

SKU: 225654

Price on request

€194.73

€0

Overview

8-pin SmartWire-DT round cable for connecting the SWD participants outside the control cabinet, 50 m long with 8 mm diameter, not pre-assembled, for connection to SWD cable adapter SWD4-8FRF-10 and circuit boards M22-SWD-Ix..

Property	Value
Number of cores:	8
Outer diameter approx.:	8.2 mm
Conductor class:	Cl.2 = multi-wire
Stranding element:	Pairs
Core marking:	Color
Shield over stranding element:	Foil
Category:	other
Flame retardant:	according to EN 60332-1-2
Low smoke according to EN 61034-2:	no
Sheath color:	green
Conductor nominal cross-section:	0.5 mm²
Conductor diameter:	1.5 mm
Stranding:	Bundle
Material of the conductor insulation:	other
Number of stranding elements:	4
Shield over stranding:	without
Conductor surface:	bare
Protective sheath:	other
Sheath material:	Polyvinyl chloride (PVC)
Halogen-free according to EN 60754-1/2:	no
Halogen-free according to IEC 60754-2:	no
Low smoke according to IEC 61034-2:	no
Oil-resistant according to EN 60811-404:	yes
Oil-resistant according to IEC 60811-404:	yes
Insulation integrity according to IEC 60331:	no
Permissible external cable temperature during assembly/handling:	-10 to 80 °C
Permissible Cable external temperature after installation without vibration:	-20 to 80 °C
NVP value:	66.5 %
Specification of core insulation:	other
Cable longitudinally watertight:	no
Cable transversely watertight:	no
Specification of sheath material:	Polypropylene (PP)
Fire behavior class according to EN 13501-6:	without
Smoke development class according to EN 13501-6:	without
Drip behavior class according to EN 13501-6:	without
Acid development class according to EN 13501-6:	without
Min. permissible bending radius, flexible use with forced guidance:	120 mm
Min. permissible bending radius, flexible use/free movement:	120 mm
Min. permissible bending radius, stationary use/permanently installed:	120 mm
Laying in the ground:	no
UV-resistant:	yes
