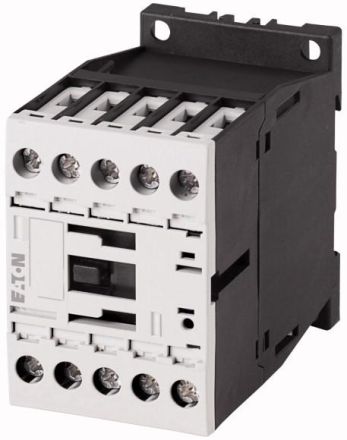

Auxiliary contactor, Product range: Auxiliary contactors DILA, Application: Auxiliary contactor, Description: Basic devices with positively guided contacts, Connection technology: Screw terminals, Rated operating current AC-15 220 V 230 V 240 V: Ie= 4 A, 380 V 400 V 415 V: Ie= 4 A, Contact configuration S = normally open: 3 S, Contact configuration Ö = normally closed: 1 Ö, Identification number/design of the combinations Identification number: 31E, Can be combined with auxiliary switch module: DILA-XHI (V) ., Actuation voltage: 12 V DC, Current type AC/DC: DC operation, Protection class: IP20, Notes: Switching elements in accordance with EN 50011., Connection designation of the coil in accordance with EN 50005., Standards and regulations: IEC/EN 60947, EN 60947-5-1,0660, UL, CSA
