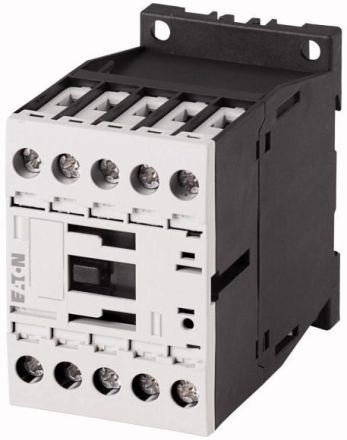

Eaton DILA-31 (TVC200) 3S 1Ö AC contactor, 276375

In stock
SKU: 476551
€39.93
Into a basketIn the basketGo

Overview

Auxiliary contactor, Product range: Auxiliary contactors DILA, Application: Auxiliary contactor, Description: Basic devices with positively guided contacts, Connection technology: Screw terminals, Rated operating current AC-15 220 V 230 V 240 V: Ie= 4 A, 380 V 400 V 415 V: Ie= 4 A, Contact configuration S = normally open: 3 S, Contact configuration Ö = normally closed: 1 Ö, Identification number/design of the combinations Identification number: 31E, Can be combined with auxiliary switch module: DILA-XHI (V) ., Actuation voltage: TVC200: 200 V 50 Hz/200-220 V 60 Hz, Current type AC/DC: Alternating current operation, Protection class: IP20, Notes: Switching elements in accordance with EN 50011., Connection designation of the coil in accordance with EN 50005., Standards and regulations: IEC/EN 60947, EN 60947-5-1,0660, UL, CSA

PropertyValue
Number of auxiliary contacts as normally open:3
Number of auxiliary contacts as normally closed:1
Rated operating current Ie, 400 V:4 A
Rated control supply voltage Us at AC 50 Hz:200 V
Rated control supply voltage Us at AC 60 Hz:200 to 220 V
Mounting type:DIN rail/screw
Interface:no
Voltage type for Actuation:AC
With LED display:no
Connection type auxiliary circuit:screw connection
Manual operation possible:no

Characteristics

Manual operation possibleNo
HABDILA-31 (TVC200) 3S 1NC AC
ManufacturerEaton
HAN276375
GTIN4015082763756
Connection type auxiliary circuitScrew connection
Number of auxiliary contacts as normally open3
Number of auxiliary contacts as normally closed1
Rated operational current Ie, 400 V4 A
Rated control supply voltage Us at AC 50 Hz200V
Rated control supply voltage Us at AC 60 Hz200 to 220 V
With LED displayNo
Mounting typeDIN rail/screw
InterfaceNo
Voltage type for actuationAC
