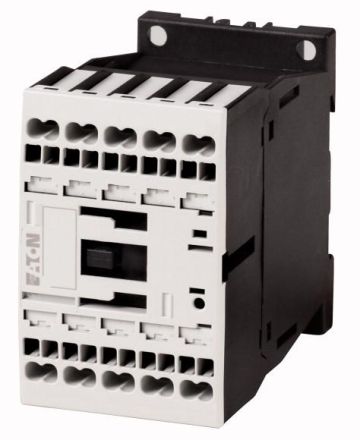

Auxiliary contactor, Product range: Auxiliary contactors DILA, Application: Auxiliary contactor, Description: Basic devices with positively guided contacts, Connection technology: Spring-loaded terminals, Rated operating current AC-15 220 V 230 V 240 V: Ie= 4 A, 380 V 400 V 415 V: Ie= 4 A, Contacts N/O = Normally open: 2 N/O, Contacts N/C = Normally closed: 2 N/C, Identification number/design of the combinations Identification number: 22E, Can be combined with auxiliary switch module: DILA-XHIC (V) ., Actuating voltage: 110 V 50 Hz, 120 V 60 Hz, Current type AC/DC: Alternating current operation, Protection class: IP20, Notes: Switching elements in accordance with EN 50011., Connection designation of the coil in accordance with EN 50005., Standards and regulations: IEC/EN 60947, EN 60947-5-1,0660, UL, CSA
