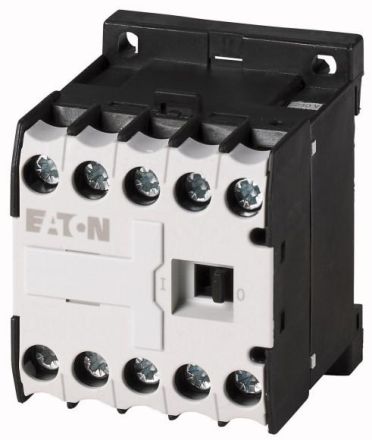

Auxiliary contactor, Product range: Miniature contactors DILER, Application: Auxiliary contactor, Description: with positively guided contacts, Connection technology: Screw terminals, Rated operating current conventional thermal current 1-pole open at 50 °C: Ith = Ie= 10 A, Rated operating current AC-15 220 V 230 V 240 V: Ie= 6 A, 380 V 400 V 415 V: Ie= 3 A, Contacts N/O = normally open: 2 N/O, Contacts N/C = normally closed: 2 N/C, Code number/design of the combinations Code number: 22E, Usable for: .DILE, Actuating voltage: 240 V 50 Hz, Current type AC/DC: Alternating current operation, Protection class: IP20, Notes: Switching elements in accordance with EN 50011., Connection designation of the coil in accordance with EN 50005., Standards and Standards: IEC/EN 60947, EN 60947-5-1,0660, UL, CSA
