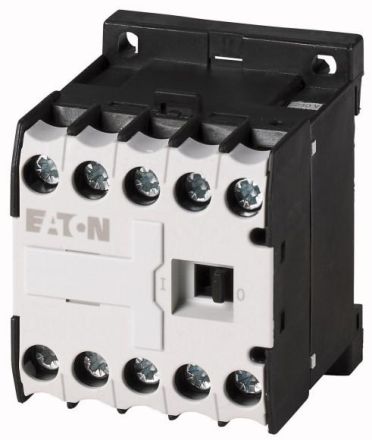

Auxiliary contactor, Product range: DILER miniature contactors, Application: Auxiliary contactor, Description: with positively guided contacts, Connection technology: Screw terminals, Rated operating current conventional thermal current 1-pole open at 50 °C: Ith = Ie= 10 A, Rated operating current AC-15 220 V 230 V 240 V: Ie= 6 A, 380 V 400 V 415 V: Ie= 3 A, Contact configuration S = normally open: 2 S, Contact configuration Ö = normally closed: 2 Ö, Identification number/design of the combinations Identification number: 22E, Actuation voltage: 60 V DC, Current type AC/DC: direct current actuation, Protection class: IP20, Notes: Switching elements in accordance with EN 50011., Connection designation of the coil in accordance with EN 50005., Integrated diode-resistor combination., Coil power 2.6 W., Standards and regulations: IEC/EN 60947, EN 60947-5-1,0660, UL, CSA
